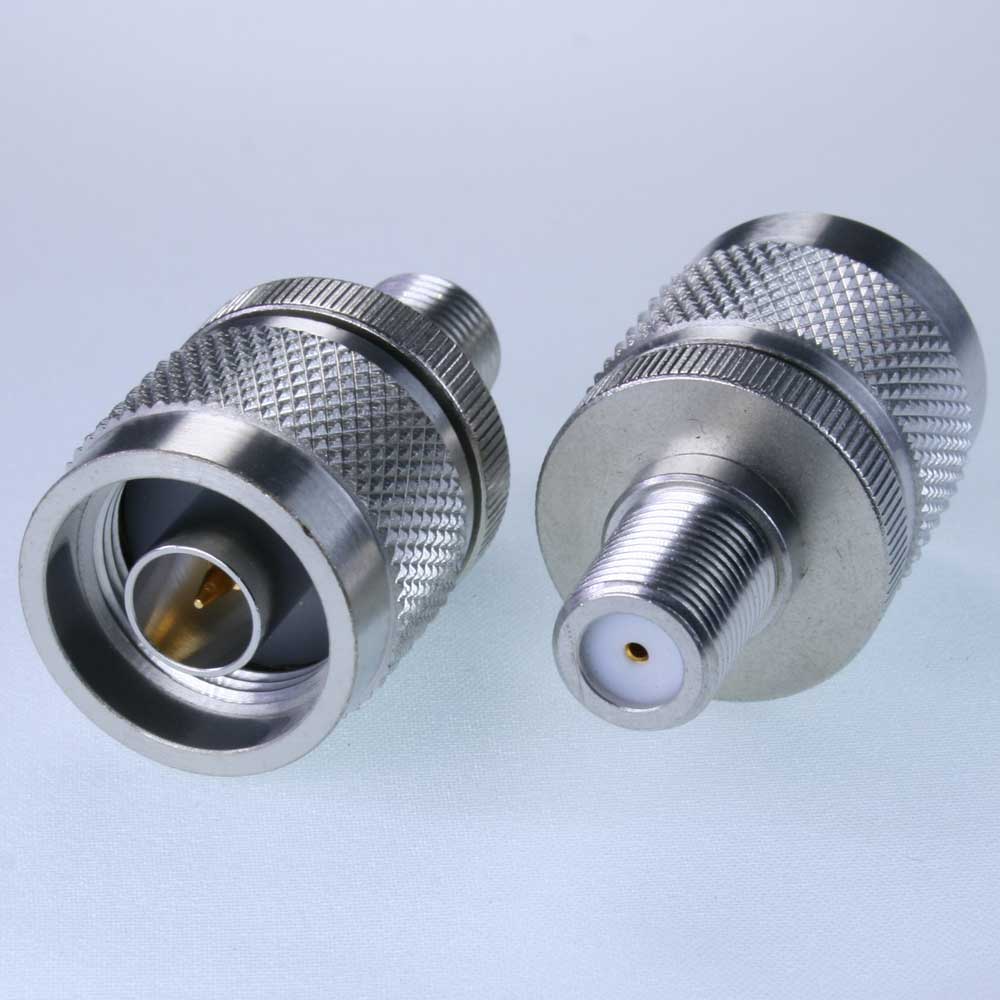

N plug 50ohm to F jack 75ohm (impedance mismatch)
Jyebao AD-N3F8-50/75 - RF Adaptors: RF Adaptors
| Connection Type | Between Series |
|---|---|
| Connector 1 Series | F |
| Connector 1 Gender | Jack |
| Connector 1 Polarity | Standard Polarity |
| Connector 2 Series | N |
| Connector 2 Gender | Plug |
| Connector 2 Polarity | Standard Polarity |
| Connector 3 Series | |
| Connector 3 Gender | |
| Geometry | Straight |
| Configuration | |
| Frequency & Max VSWR | NA |
| Impedance | 50 & 75ohm |
| Body 1 Material & Plating | Brass Tin-Zinc-Copper |
| Body 2 Material & Plating | Brass Tin-Zinc-Copper |
| Hermetic/IP Rating | |
| Remark |
