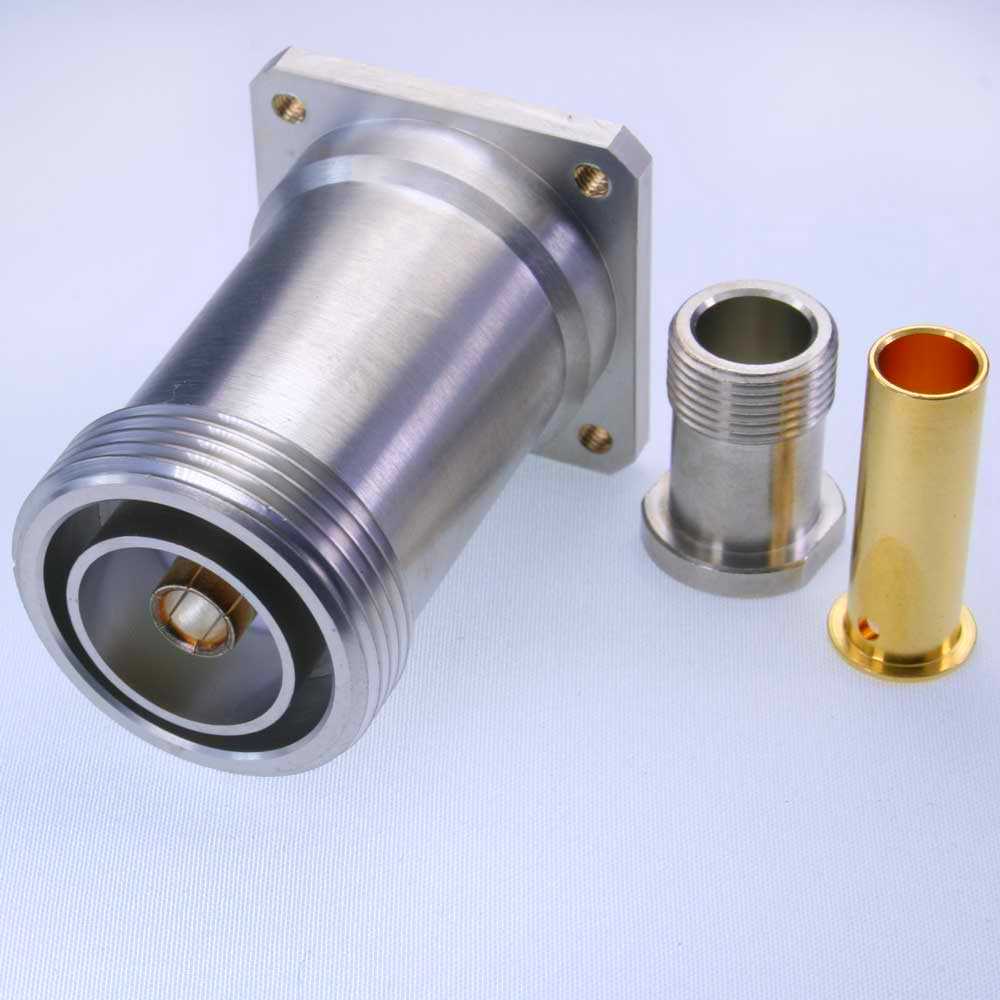

7/16 jack solder clamp 4 hole flange for .250 conformable with FEP jacket; 1.7GHz VSWR1.2
Jyebao 7/16-8346L-0250/FEP - RF Connectors: Cable Mount Connector
| Connector Series | 7/16 |
|---|---|
| Cable Type | .250 Formable Jacketed |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder Clamp |
| Pin Entry | Plug in |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Tin-zinc-copper |
| Coupling nut material & plating | |
| Hermetic/IP Rating | |
| Remark |
