7/16 jack solder clamp 4 hole flange, IP67 mated, for RG402; 3GHz VSWR1.2 & 7.5GHz VSWR1.35

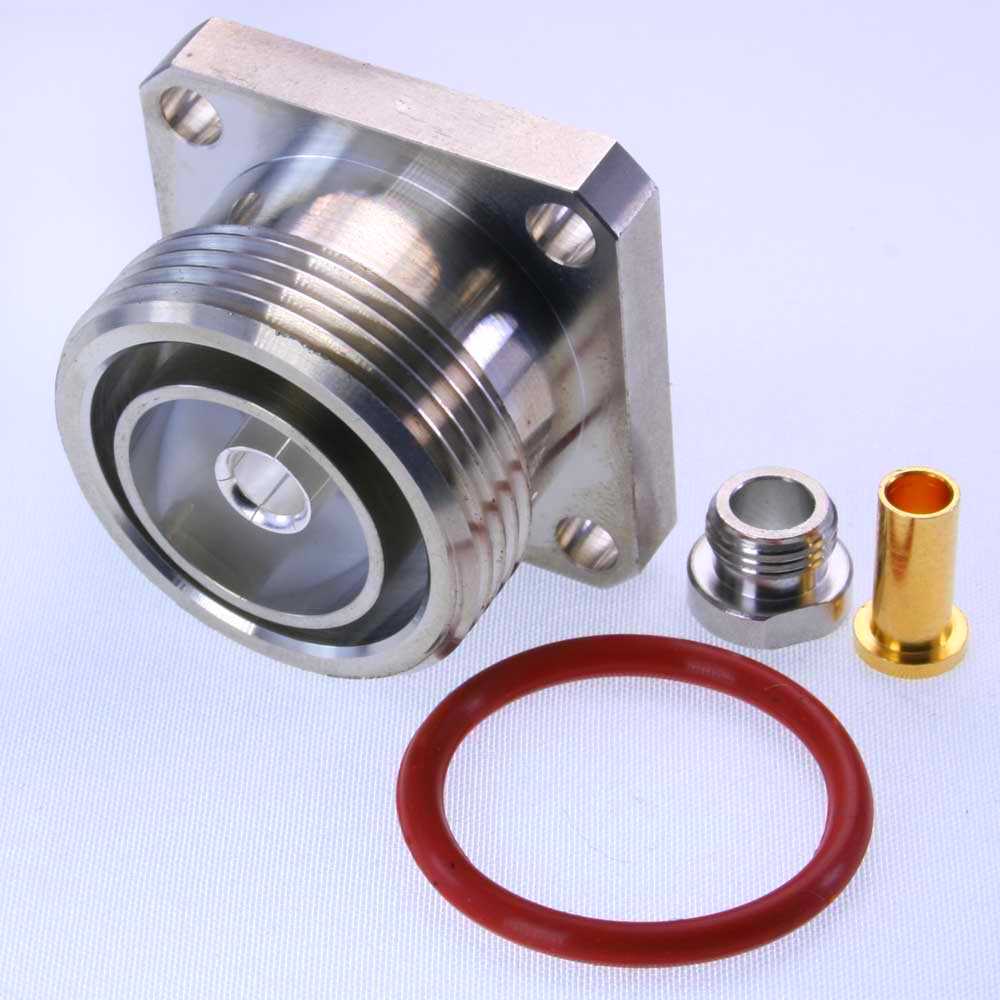

Jyebao 7/16-8346-0141 - RF Connectors: Cable Mount Connector
| Connector Series | 7/16 |
|---|---|
| Cable Type | .141 Semi-Rigid and .141 Formable and RG402 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder Clamp |
| Pin Entry | Plug in |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Tin-zinc-copper |
| Coupling nut material & plating | |
| Hermetic/IP Rating | IP67(mated) |
| Remark |
