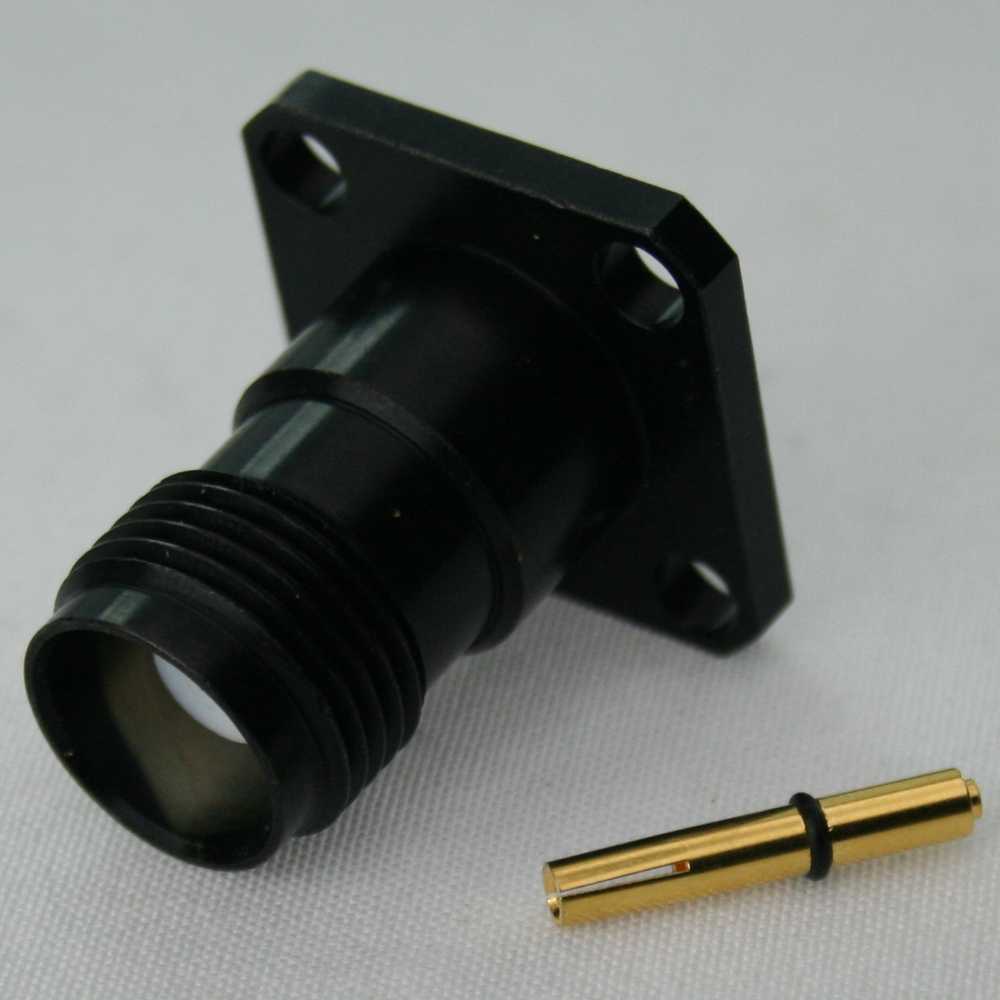

Black chromium plated TNC jack solder 17.5mm SQ 4 hole flange, IP67, for RG405; 7.5GHz VSWR1.2
Jyebao TNC8346-0085/BL/IP - RF Connectors: Cable Mount Connector
| Connector Series | TNC |
|---|---|
| Cable Type | .085 Semi-Rigid and .085 Formable and RG405 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder |
| Pin Entry | Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Black chromium |
| Coupling nut material & plating | |
| Hermetic/IP Rating | IP67(unmated&mated) |
| Remark |
