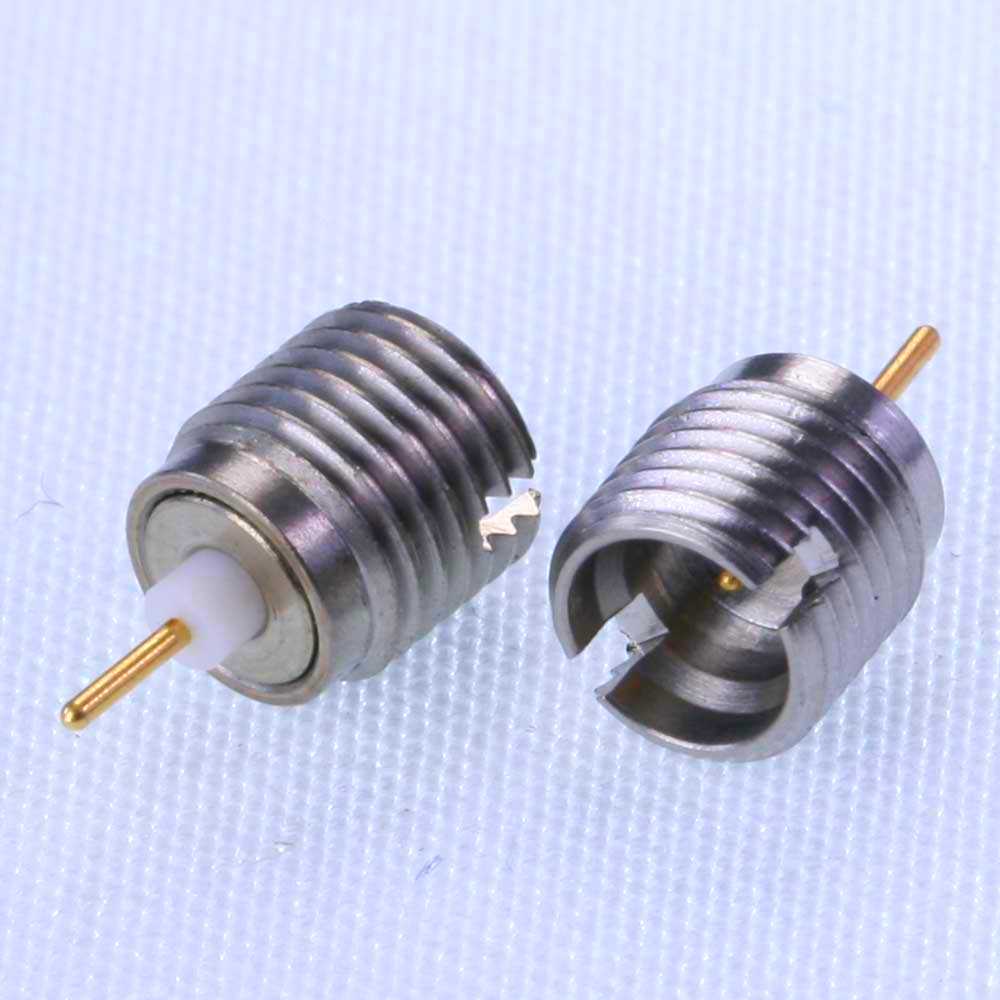

SMP plug screw in shroud limited detent with round contact( Φ0.46;L=3.1), PTFE L=0.76; 18GHz VSWR1.25
Jyebao SMP3500S-LD46A - RF Connectors: Panel&Bulkhead receptacle
| Connector Series | SMP |
|---|---|
| Connector Gender | Plug |
| Geometry | Straight |
| Configuration | Screw in Shroud |
| Connector Polarity | Standard polarity |
| Impedance | 50ohm |
| Contact Pin Type | Round Contact |
| Pin OD (mm) or Thread (M) Flange connectors | 0.46 |
| Pin Protrusion (mm) Flange connectors | 3.1 |
| Dielectric Protrusion (mm) Flange Connectors | 0.76 |
| Body Material | Stainless |
| Body Plating | Passivated |
| Hermetic/IP Rating | |
| Remark |
