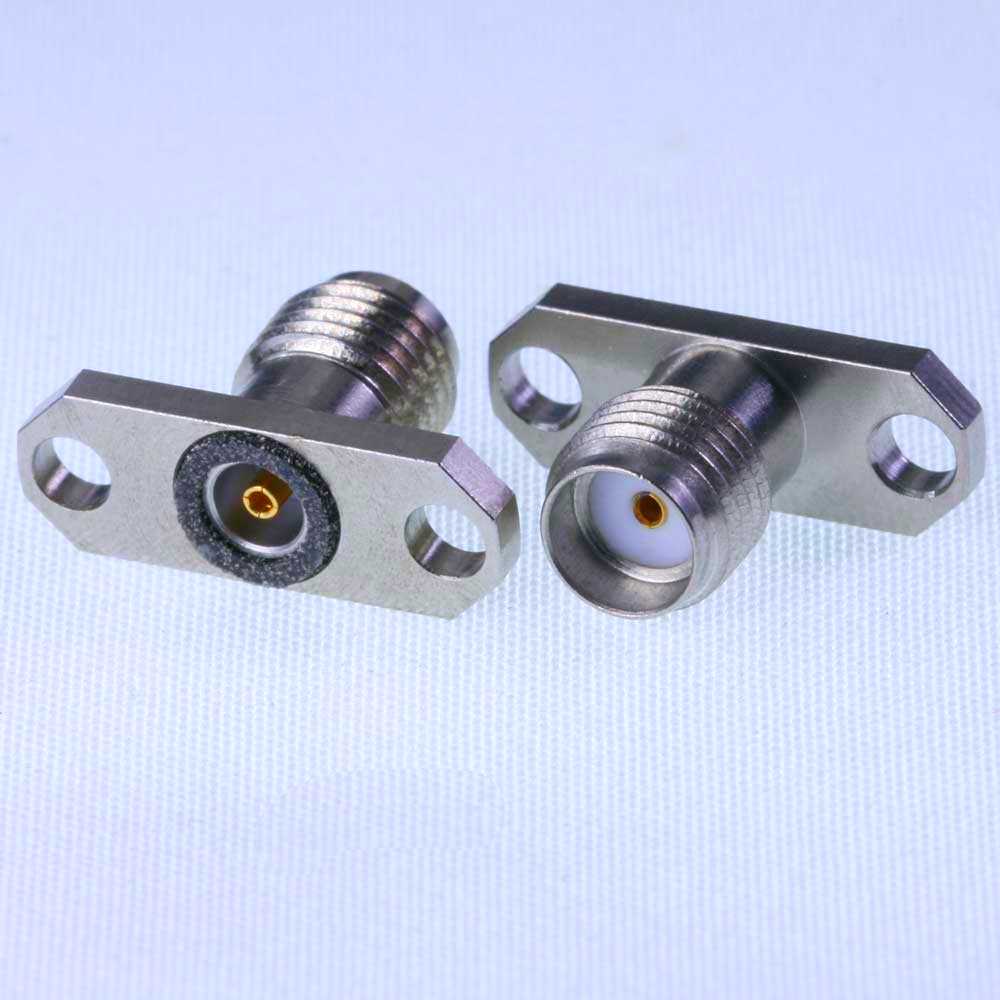

SMA field replaceable jack, ϕ15.9mm (.625inch) 2 hole flange with EMI gasket, accepts ϕ0.91mm (.036inch) pin, 27GHz VSWR1.15
Jyebao SMA8F26EA-GA36 - RF Connectors: Field Replaceable Connector
| Connector Series | SMA |
|---|---|
| Connector Gender | Jack |
| Configuration | 2 hole flange ϕ15.9mm (.625inch) |
| EMI gasket or Metal Contact ring | EMI gasket |
| Frequency & Max VSWR | 27GHz VSWR1.15 |
| Accepts pin size | ϕ0.91mm (.036inch) |
| Hermetic/IP Rating | |
| Body Material & Plating | Stainless Passivated |
| Remarks |
