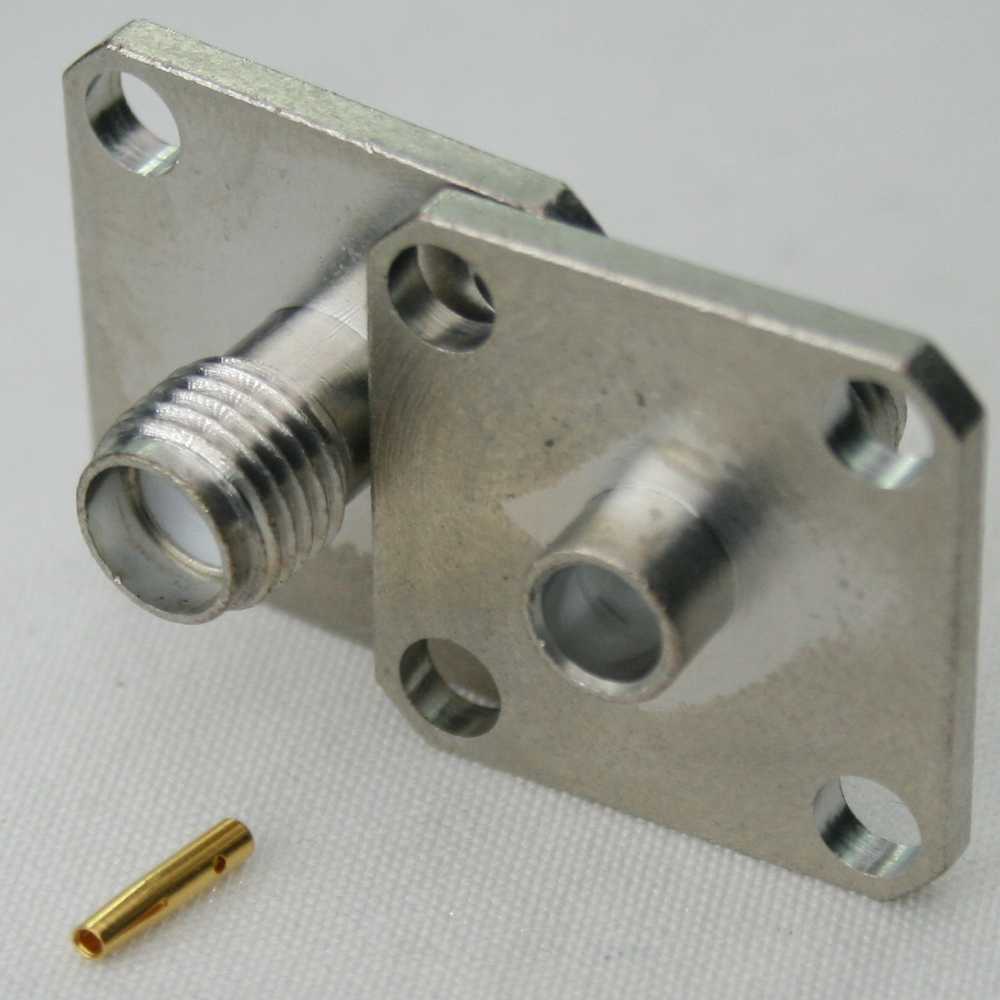

SMA jack solder 4 hole 17.5SQ flange for RG402; 18Ghz VSWR1.2
Jyebao SMA8346T-0141/W - RF Connectors: Cable Mount Connector
| Connector Series | SMA |
|---|---|
| Cable Type | .141 Semi-Rigid and .141 Formable and RG402 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder |
| Pin Entry | Crimp and Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Gold |
| Coupling nut material & plating | |
| Hermetic/IP Rating | |
| Remark |
