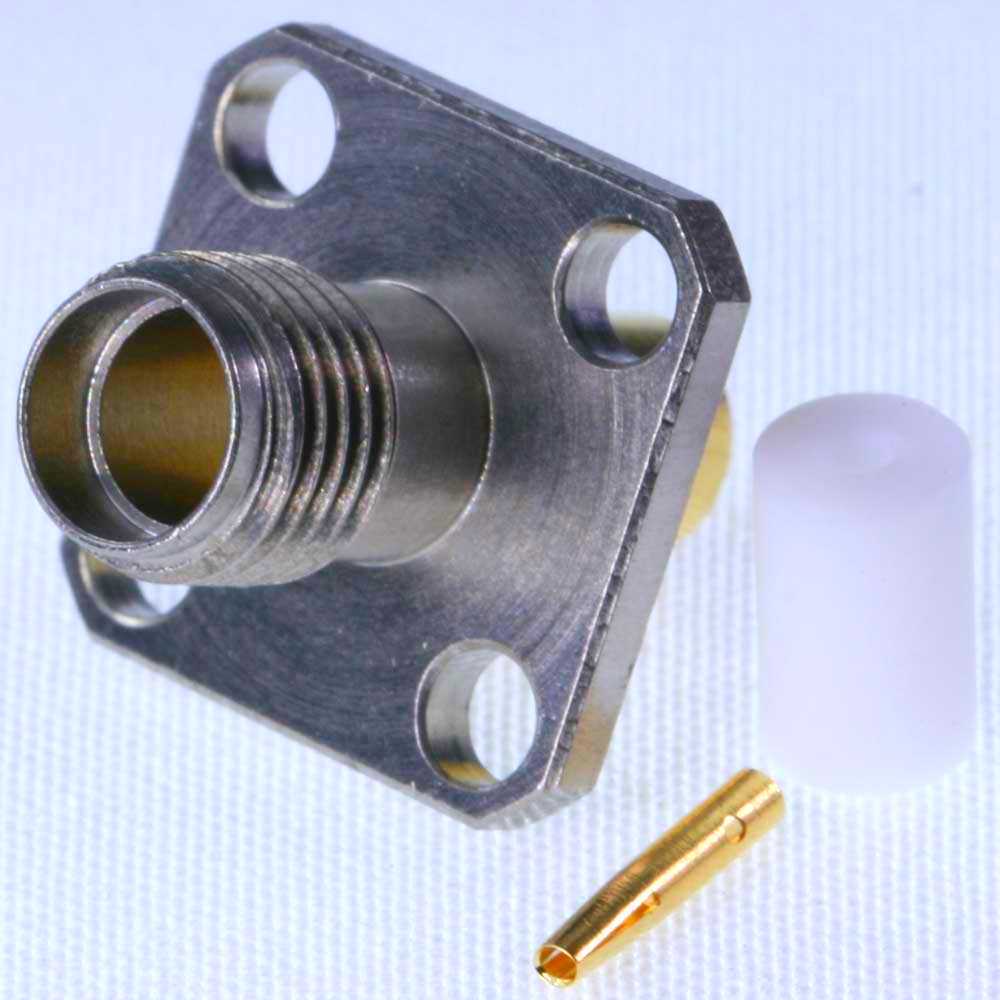

SMA jack solder SQ 12.7mm 4 hole flange for RG402; 27GHz VSWR1.2
Jyebao SMA8346S-0141 - RF Connectors: Cable Mount Connector
| Connector Series | SMA |
|---|---|
| Cable Type | .141 Semi-Rigid and .141 Formable and RG402 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder |
| Pin Entry | Solder |
| Impedance | 50ohm |
| Body Material | Stainless |
| Body Plating | Passivated |
| Coupling nut material & plating | |
| Hermetic/IP Rating | |
| Remark |
