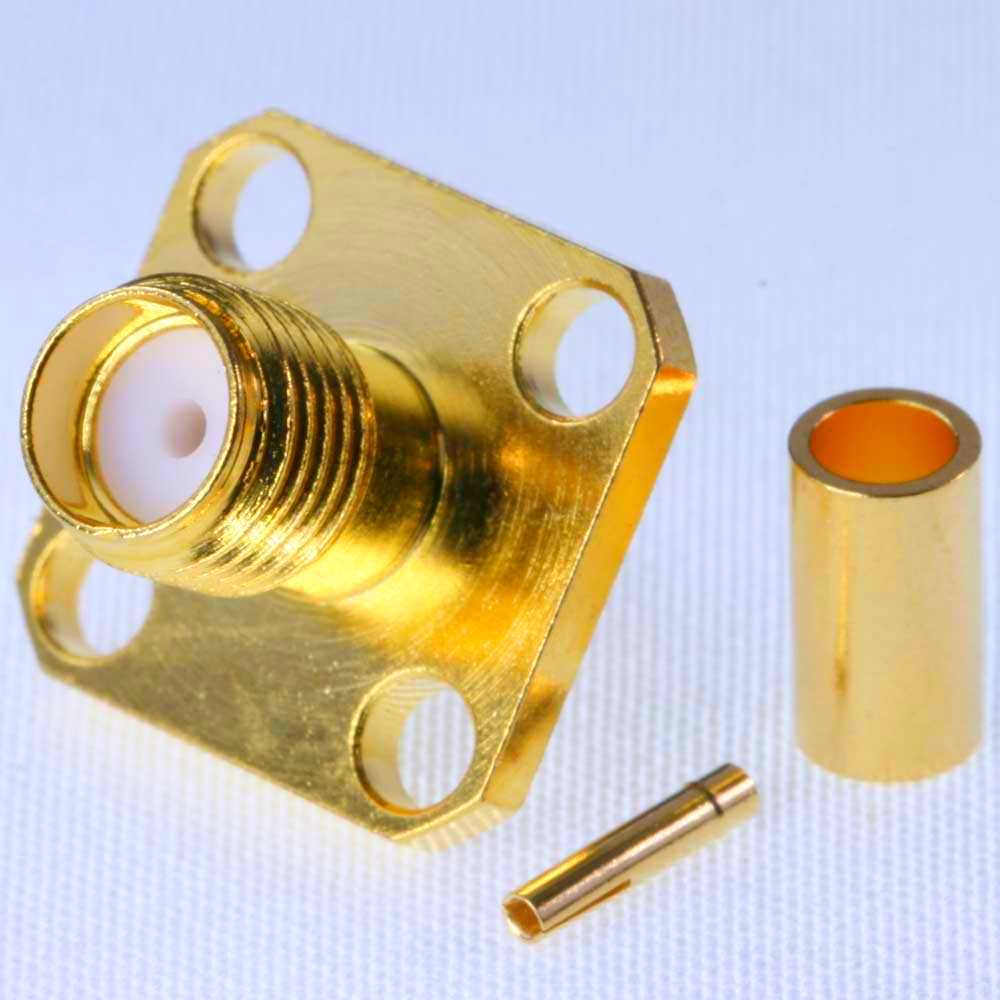

SMA jack crimp SQ 12.7mm 4 hole flange for RG174,RG188,RG316; 12.4Ghz VSWR1.2
Jyebao SMA8146-0316 - RF Connectors: Cable Mount Connector
| Connector Series | SMA |
|---|---|
| Cable Type | RG174 and RG188 and RG316 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Crimp |
| Pin Entry | Crimp and Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Gold |
| Coupling nut material & plating | |
| Hermetic/IP Rating | |
| Remark |
