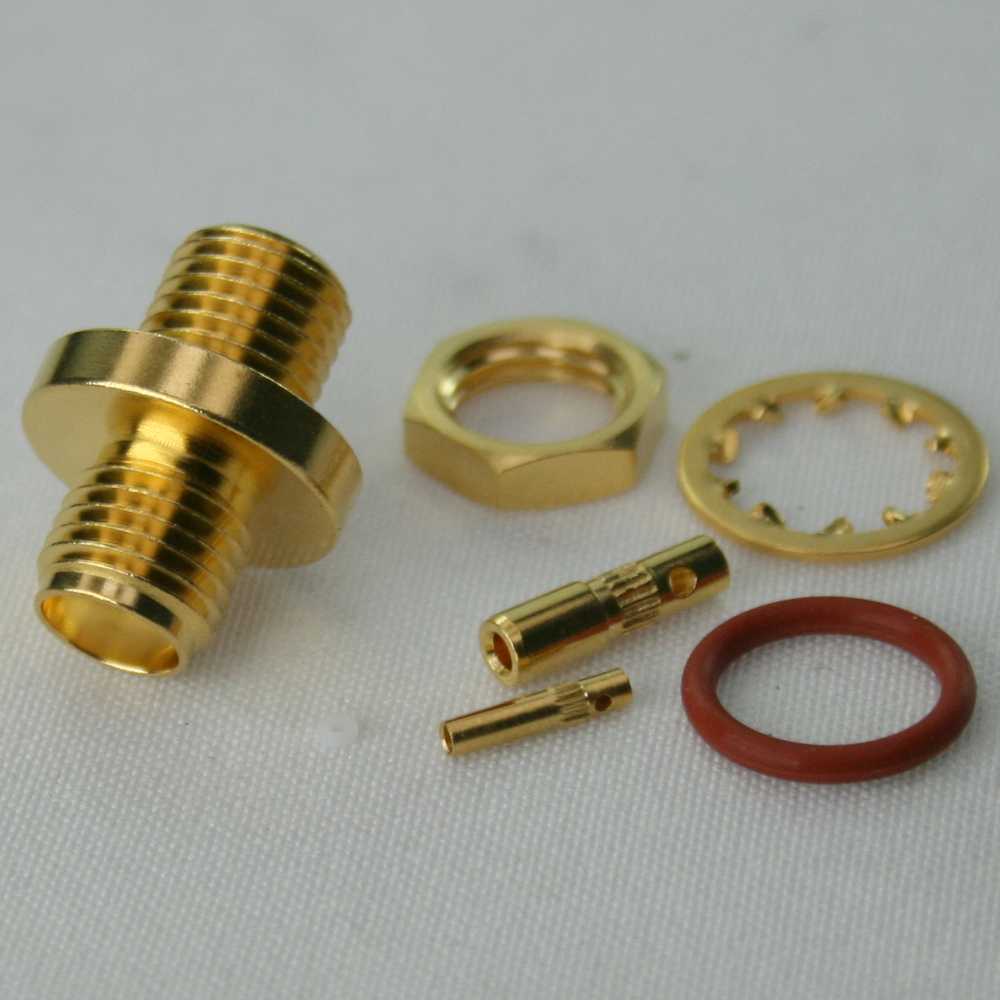

SMA jack press fit bulkhead, IP67 mated, for 1.13mm; 6Ghz VSWR1.2 & 18GHz VSWR1.35
Jyebao SMA8105PF-1.13 - RF Connectors: Cable Mount Connector
| Connector Series | SMA |
|---|---|
| Cable Type | 1.13mm |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | |
| Connector Polarity | Standard polarity |
| Cable Entry | Press Fit |
| Pin Entry | Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Gold |
| Coupling nut material & plating | |
| Hermetic/IP Rating | IP67(mated) |
| Remark |
