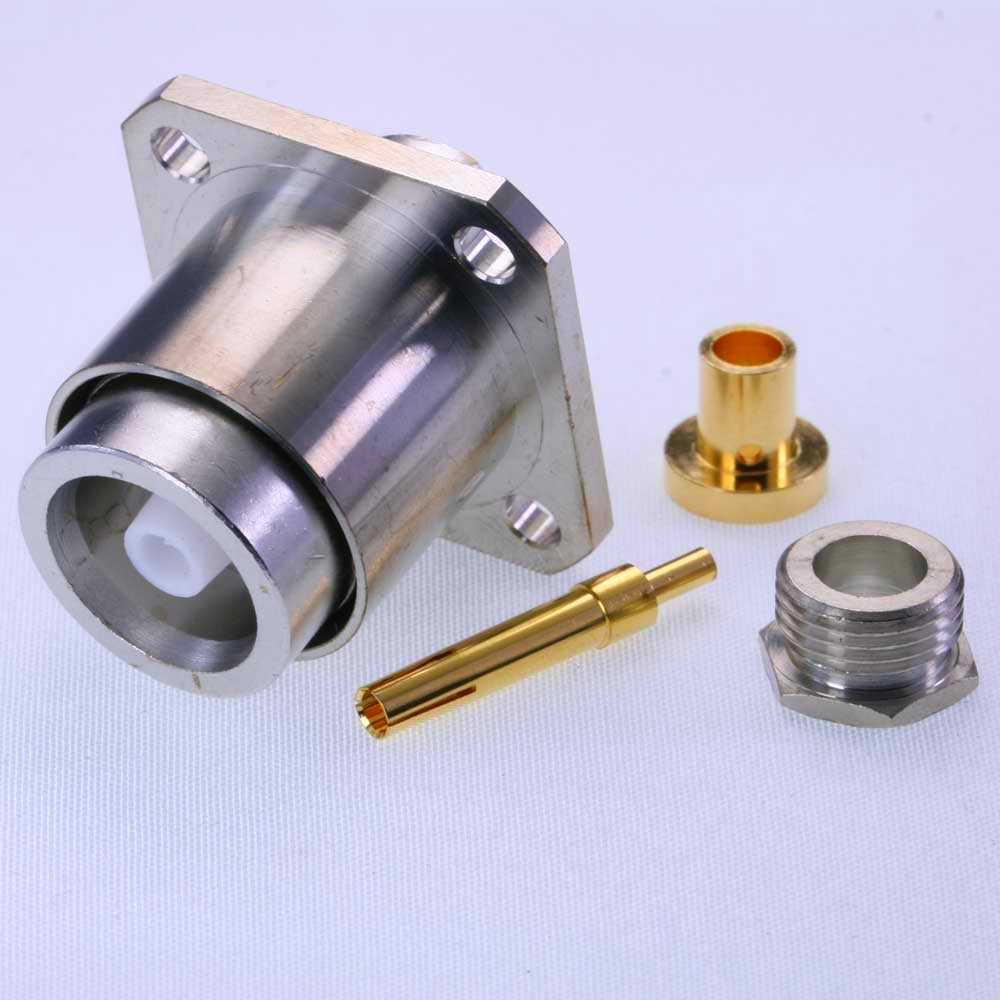

Snap on SC jack solder clamp 4 hole flange for RG402; 3GHz VSWR1.2
Jyebao SC8346QM-0141 - RF Connectors: Cable Mount Connector
| Connector Series | SC |
|---|---|
| Cable Type | .141 Semi-Rigid and .141 Formable and RG402 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder Clamp |
| Pin Entry | Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Tin-zinc-copper |
| Coupling nut material & plating | |
| Hermetic/IP Rating | |
| Remark | Snap on |
