N jack solder solder clamp SQ17.5mm 4 hole flange, IP67 mated, for low loss RG402; 10Ghz VSWR1.1; 18Ghz VSWR1.2

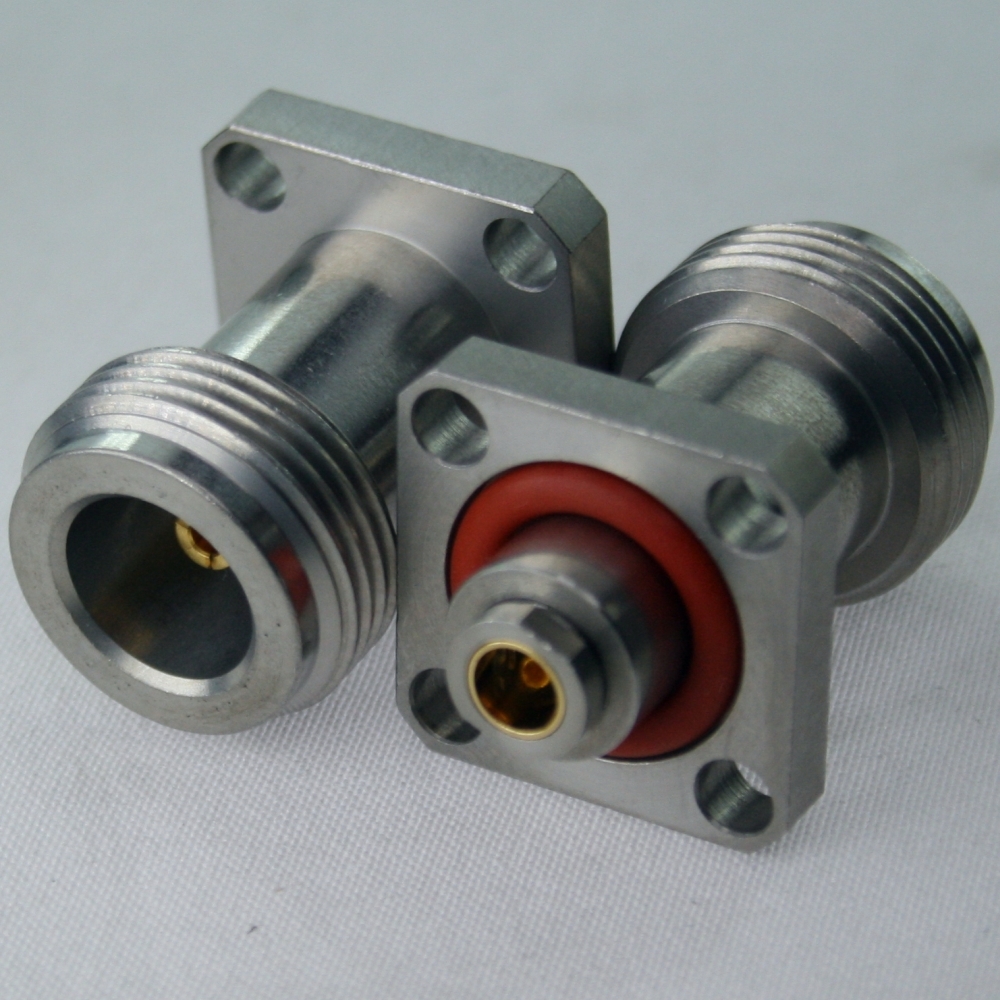

Jyebao N8346S-0141L - RF Connectors: Cable Mount Connector
| Connector Series | N |
|---|---|
| Cable Type | .141 Semi-Rigid Low Loss |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder |
| Pin Entry | Plug in |
| Impedance | 50ohm |
| Body Material | Stainless |
| Body Plating | Passivated |
| Coupling nut material & plating | |
| Hermetic/IP Rating | IP67(mated) |
| Remark |
