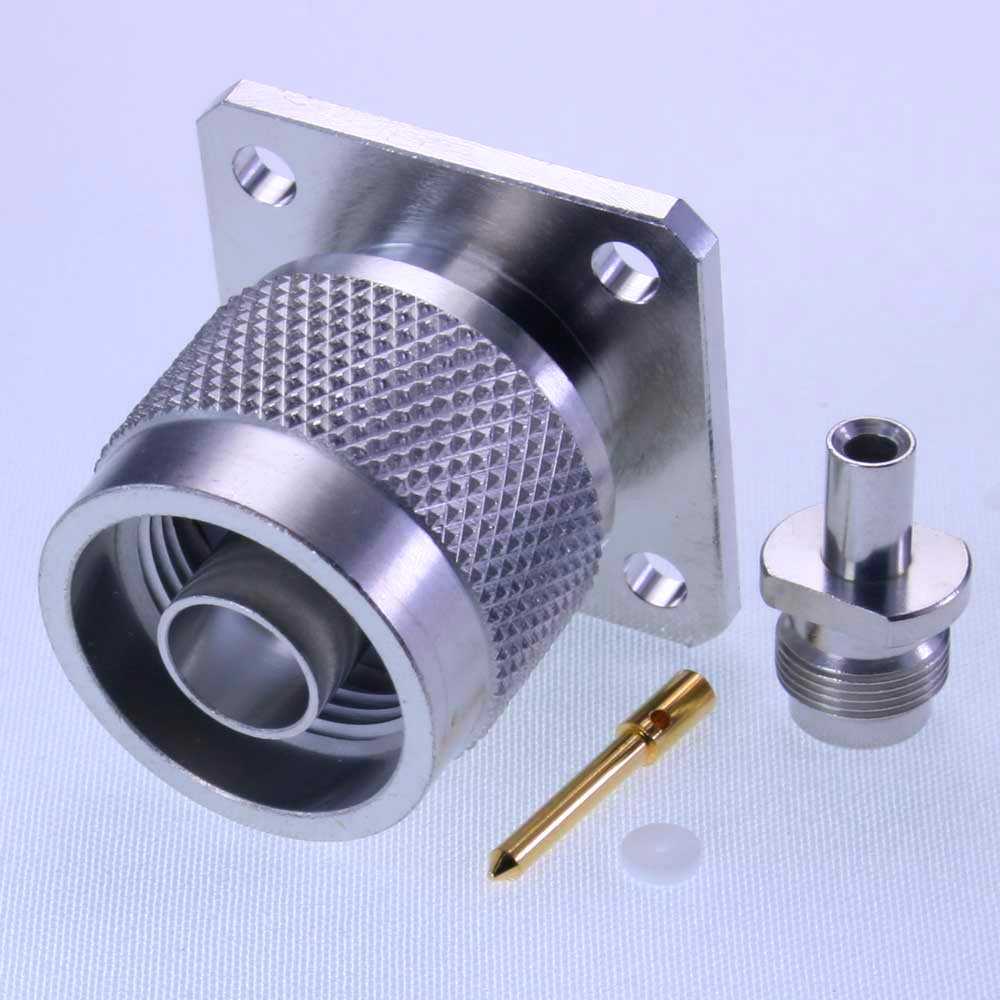

N plug solder clamp SQ 25.4mm 4 hole flange for RG405; 11GHz VSWR1.25
Jyebao N3346-0085 - RF Connectors: Cable Mount Connector
| Connector Series | N |
|---|---|
| Cable Type | .085 Semi-Rigid and .085 Formable and RG405 |
| Connector Gender | Plug |
| Geometry | Straight |
| Configuration | 4 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder Clamp |
| Pin Entry | Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Tin-zinc-copper |
| Coupling nut material & plating | Brass Tin-zinc-copper |
| Hermetic/IP Rating | |
| Remark |
