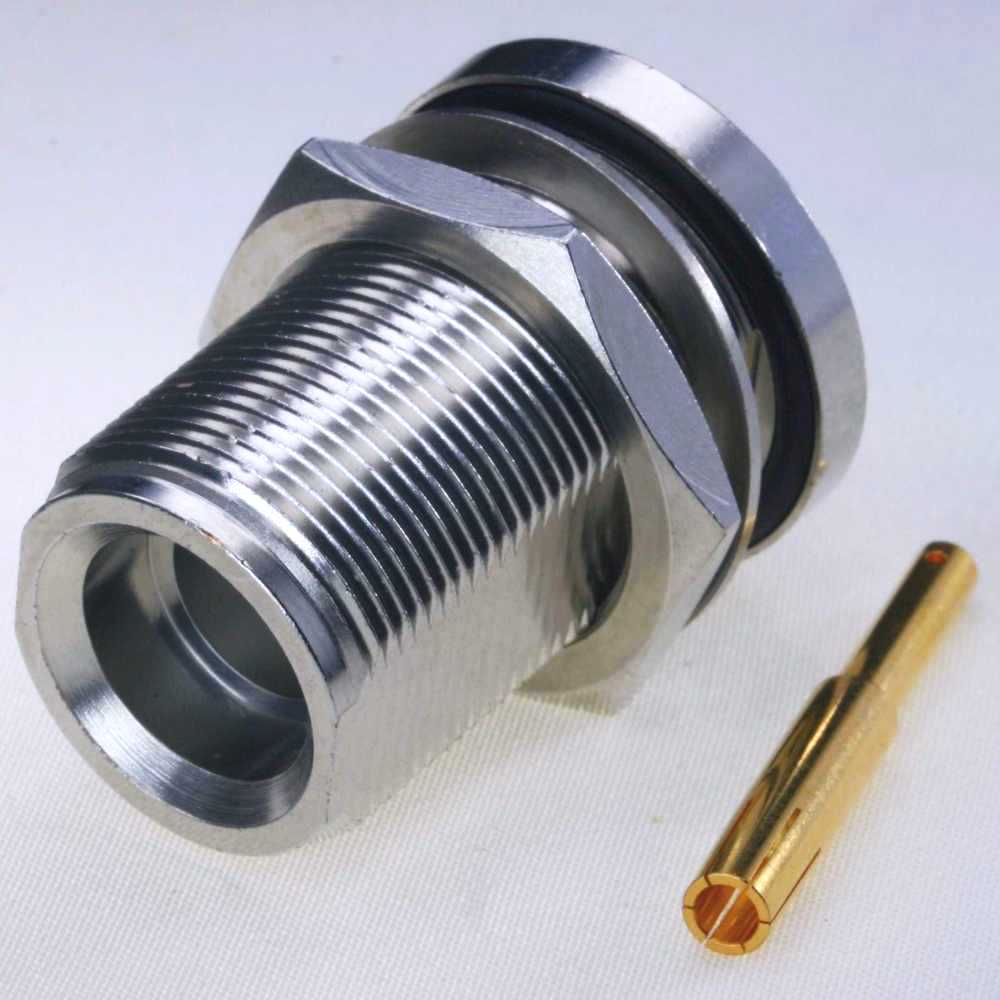

Low PIM 4.1-9.5 jack solder bulkhead for RG402; IP67 mated; 6GHz VSWR1.15
Jyebao MDI8305-0141/LP - RF Connectors: Cable Mount Connector
| Connector Series | 4.1-9.5 |
|---|---|
| Cable Type | .141 Semi-Rigid and .141 Formable and RG402 |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | Bulkhead |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder Clamp |
| Pin Entry | Solder |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Tin-zinc-copper |
| Coupling nut material & plating | |
| Hermetic/IP Rating | IP67(mated) |
| Remark | Low Pim |
