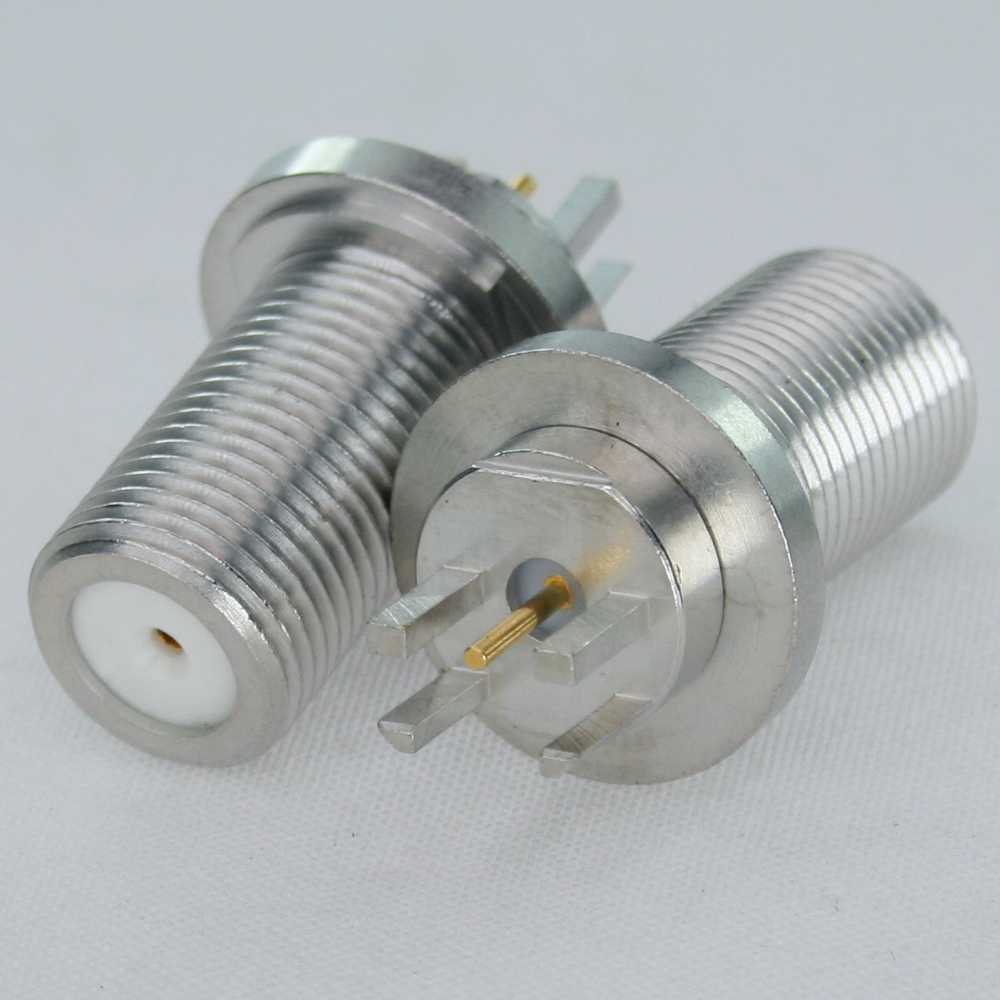

F jack PCB mount bulkhead end launch (T=2.3) with round contact (Φ0.78); 2GHz VSWR1.1 & 4GHz VSWR1.25
Jyebao F8404D-0000 - RF Connectors: PCB Mount Connector
| Connector Series | F |
|---|---|
| Connector Gender | Jack |
| Connector Polarity | Standard polarity |
| Impedance | 75ohm |
| Geometry | Straight |
| Configuration | PCB Mount Bulkhead End Launch |
| Contact Pin Type | Round Contact |
| IP Rating | |
| Remark | Max PCB thickness = 2.3mm (.090inch) |
