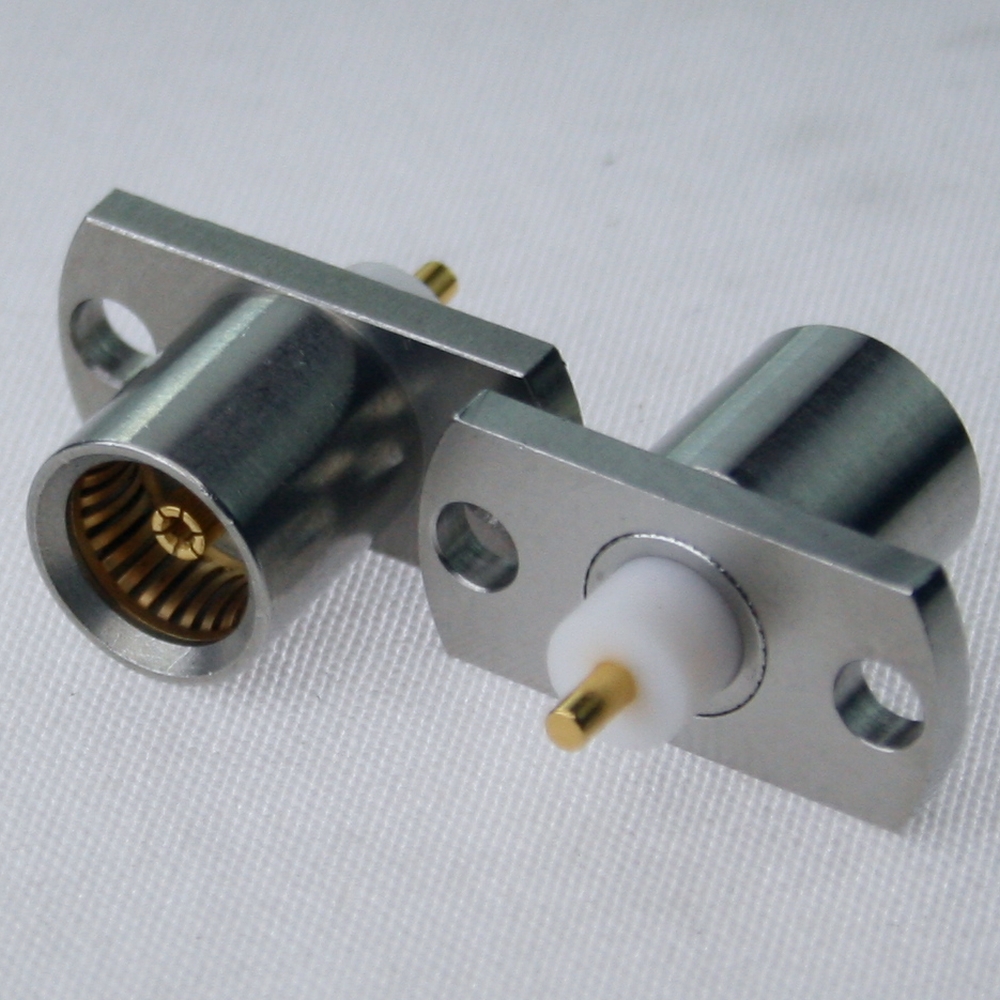

BMA jack ϕ16mm 2 hole flange with round contact (Φ1.27;L=2.5), PTFE L=3; 18GHz VSWR1.2
Jyebao BMA862HS-3/2.5 - RF Connectors: Panel&Bulkhead receptacle
| Connector Series | BMA |
|---|---|
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 2 Hole Flange 16ϕ |
| Connector Polarity | Standard polarity |
| Impedance | 50ohm |
| Contact Pin Type | Round Contact |
| Pin OD (mm) or Thread (M) Flange connectors | 1.27 |
| Pin Protrusion (mm) Flange connectors | 2.5 |
| Dielectric Protrusion (mm) Flange Connectors | 3.0 |
| Body Material | Stainless |
| Body Plating | Passivated |
| Hermetic/IP Rating | |
| Remark |
