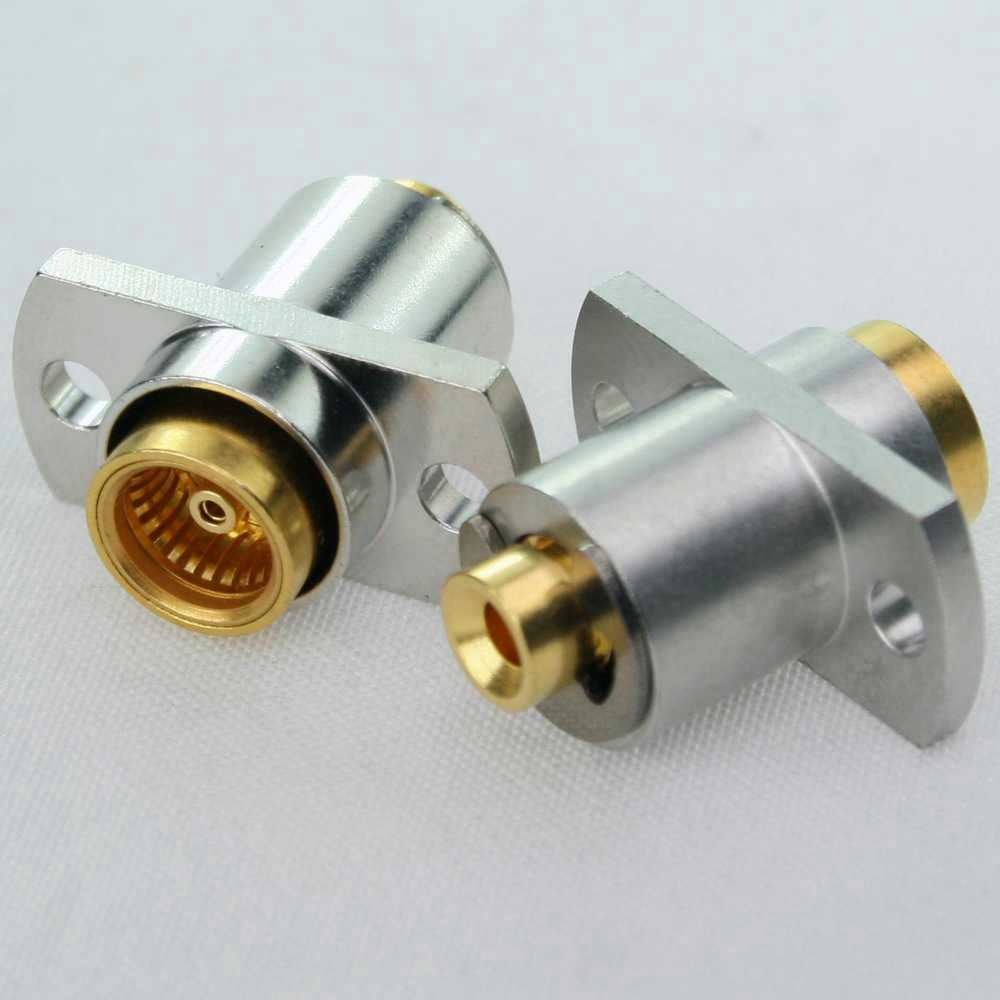

BMA jack solder 2 hole flange for low loss RG405, 18GHz VSWR1.35
Jyebao BMA8326A-52LD - RF Connectors: Cable Mount Connector
| Connector Series | BMA |
|---|---|
| Cable Type | 5002LD and RG405 Flexible Low Loss and .085 Flexible Low Loss and .085 Semi-Rigid Low Loss and RG405 Low Loss |
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 2 Hole Flange |
| Connector Polarity | Standard polarity |
| Cable Entry | Solder |
| Pin Entry | Plug in |
| Impedance | 50ohm |
| Body Material | Brass |
| Body Plating | Gold |
| Coupling nut material & plating | |
| Hermetic/IP Rating | |
| Remark |
