1.85mm field replaceable jack, ϕ13.97mm (.550inch) 2 hole flange with metal ring, accepts ϕ0.3mm (.012inch) pin, 67GHz VSWR1.25 (~SW PN 1814-05SF)

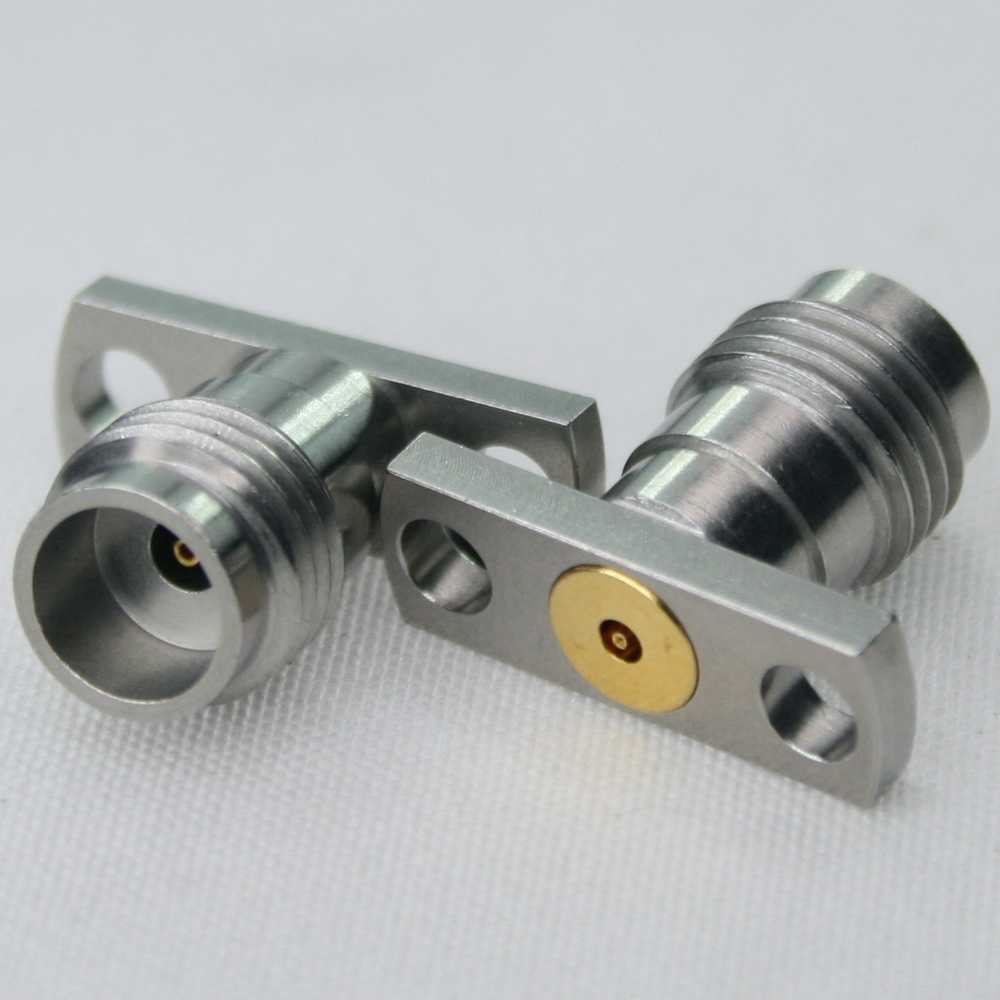

Jyebao 1.85-8F26E-EM12 - RF Connectors: Field Replaceable Connector
| Connector Series | 1.85mm |
|---|---|
| Connector Gender | Jack |
| Configuration | 2 hole flange ϕ13.97mm (.550inch) |
| EMI gasket or Metal Contact ring | Metal contact ring |
| Frequency & Max VSWR | 67GHz VSWR1.25 |
| Accepts pin size | ϕ0.3mm (.012inch) |
| Hermetic/IP Rating | |
| Body Material & Plating | Stainless Passivated |
| Remarks |
